38mm（Screw Thread） PET preform

Inquiry

Fruit juices,sports Drink, and tea plastic bottle—250ml~3000ml


Material:  Food-grade PET

Weight: 24 g~58 g

Volume: 250ml~2500ml

Production stabillity: Bottle blowing machine
                              (semi-automatic / fully automatic)

Related products: Caps & Handle

PREVNEXT
More detailed parameter information and product specifications

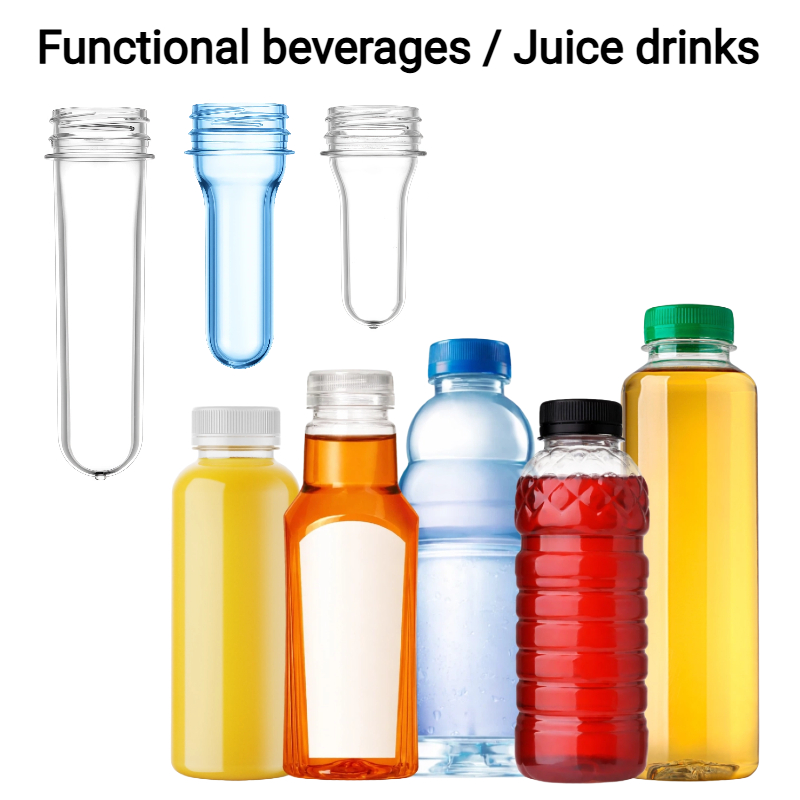

       The 38mm PET preform is suitable for plastic bottle packaging of funcional beverages and juice drinks.This neck size helps increase the filling speed for juice products and ensures smooth pouring during consumption. For sports drinks, the  larger neck finish also allows consumersto replenish fluids more quickly.

        We have optimized the overall structure of the 38mm PET preform, ensuring that the finished bottle provides more stable structural strength and improved compression resistance. It can also be paired with various type of closures to meet different application needs。 The 38mm neck finish has become an ideal choice for premium beverage packaging.

                         About The Product

Product component

Dimension value
Thread Outside Diameter (mm)   φ 27.5 + 0.1
Top Diameter (mm)   φ24.7+ 0.1
Neck Inner Diameter (mm)  φ  21.8 + 0.1
Neck Height (mm)    17.5 ±0.1
Tamper-Evident Ring Diameter (mm)   φ 28 ± 0.1
Support Ring Diameter (mm) φ 33 ± 0.1
Weight Total height Volume More detail
24.5 g 76 mm 250 ml ~ 300 ml

Packaging: Carton /Bag

Color: Transparent / Customer

Packaging： Carton / Bag

Quanity: Based on product specifications

Lead time: 5-15 days

Length tolerance controlled within: ±0.2mm

Weight  tolerance controlled within: ±0.3g
27.5 g 89 mm 300 ml~  400 ml
30 g 79 mm 450ml ~ 500 ml
32 g 90 mm 500 ml ~ 600ml
36 g 93 mm 500ml ~ 650ml
43 g 90 mm 550ml ~ 700ml
54 g 92 mm 700ml ~ 1000ml
58 g 92 mm 1000ml ~ 2000ml

▶Remark：

The values are measured manually and with electronic calipers,so there is an allowable deviation.


                            More Details




                              Ordering Process

About Honsen

Foshan Honsen Plastic Industry Co., Ltd. is a professional preform manufacturer with a reliable business scope. The company's main business scope is the production and development of PET preforms, PET plastic bottles, and packaging for drinking water and beverage products. We are Manufacturers and Custom Factory. Honsen is committed to technological innovation and product quality improvement, providing customers with innovative and environmentally sustainable packaging solutions. We use advanced production equipment and processes to ensure reliable product quality. Whether it is from raw material procurement to production process control, we take it seriously to follow industry regulations to ensure product safety and environmental performance. Whether you need a large number of standardized preforms or special customized products, we can meet your needs. If you are looking for a high-quality, safe and harmless food-grade plastic container, please feel free to contact our sales manager for more information.
