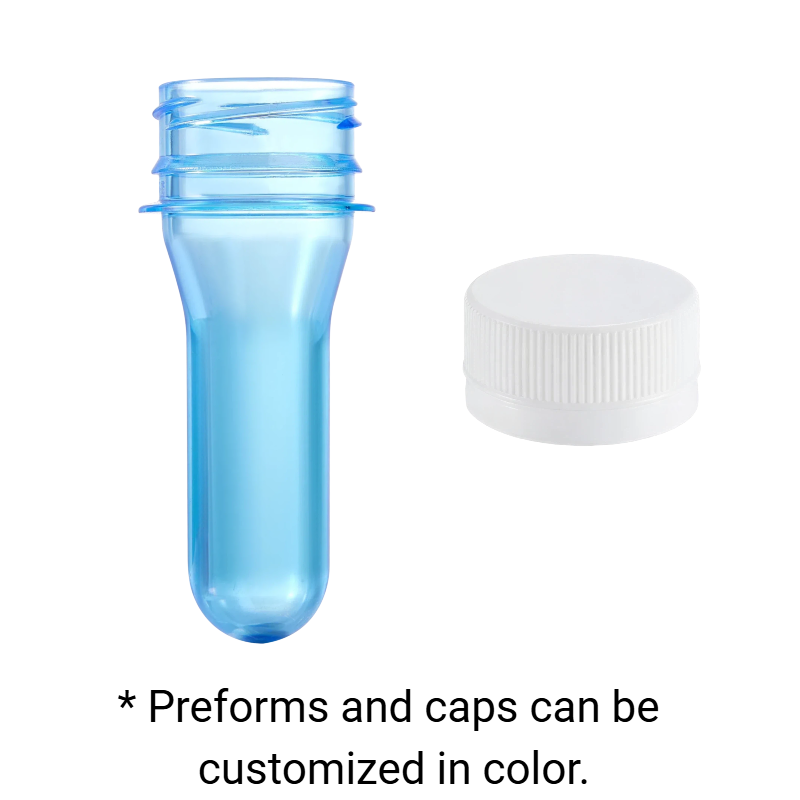

30mm（30/25） Mineral Water PET Preform

Inquiry

Mineral water plastic bottles —250 ml to 3000 ml.

Material:  Food-grade PET

Weight: 13g~38g

Production stabillity: Bottle blowing machine
                              (semi-automatic / fully automatic)

Related products: Caps & Handle

PREVNEXT
More detailed parameter information and product specifications



           The 30mm (30/25） PET preform is a widely used preform for mineral water and purified water plastic bottles. The 30mm neck size allows for convenient  control of liquid pouring flow, while the threaded bottle neck provides a reliable sealing performance. With its simple structure, the 30mm preform offers  cost-control advantages and especially suitable for high-speed bottled water  production lines.

         The product is manufactured using food-grade PET raw materials, ensuring high transparency and structural strength of the finished bottle, while also  achieving a lightweight design and effective cost control.

                        About the product

Product component

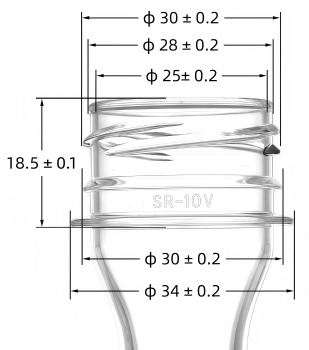

Dimension value
Thread Outside Diameter (mm)   φ 30 + 0.2
Top Diameter (mm)   φ28+ 0.2
Neck Inner Diameter (mm)  φ  25+ 0.2
Neck Height (mm)    18.5 ±0.1
Tamper-Evident Ring Diameter (mm)   φ 30.2 ± 0.2
Support Ring Diameter (mm) φ 34 ± 0.2

More Product Information ↓

Weight Total height Volume More detail
13g 76 mm 250 ml ~ 350 ml

Packaging: Carton /Bag

Color: Transparent / Customer

Packaging： Carton / Bag

Quanity: Based on product specifications

Lead time: 5-15 days

Length tolerance controlled within: ±0.2mm

Weight  tolerance controlled within: ±0.3g
14g 89 mm 300 ml~ 450 ml
15g (short) 79 mm 250 ml ~ 400 ml
15g (long) 90 mm 300 ml ~ 450ml
17g 93 mm 400ml ~ 500ml
18g 92 mm 450ml ~ 550ml
19g 90 mm 500ml ~ 650ml
20g 92 mm 500ml ~ 650ml
22g 92 mm 550ml ~ 700ml
24g 110 mm 650ml ~ 750ml
27.5g 105 mm 650ml ~ 800ml
30g 122 mm 1000 ml ~ 1500 ml
32g 132 mm 1000 ml ~ 1500 ml
35g 123 mm 1500 ml ~ 2500ml
38g 138.30 mm 1500 ml ~ 3000ml

▶Remark：

The values are measured manually and with electronic calipers,so there is an allowable deviation.
