28mm (PCO1881) Carbonated Beverages Preform

Inquiry

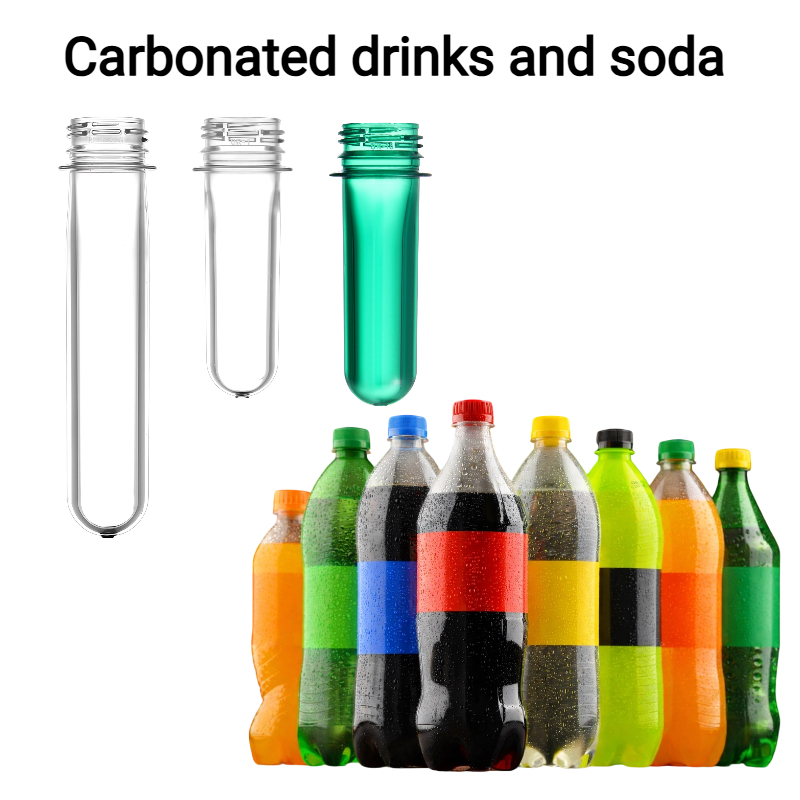

Carbonated beverages & soda drinks palstic bottle in250ml~2000ml.


Material:  Food-grade PET / Carbonated -grade

Weight: 13.5g~51g

Volume: 250ml~2000ml

Production stabillity: Bottle blowing machine
                              (semi-automatic / fully automatic)

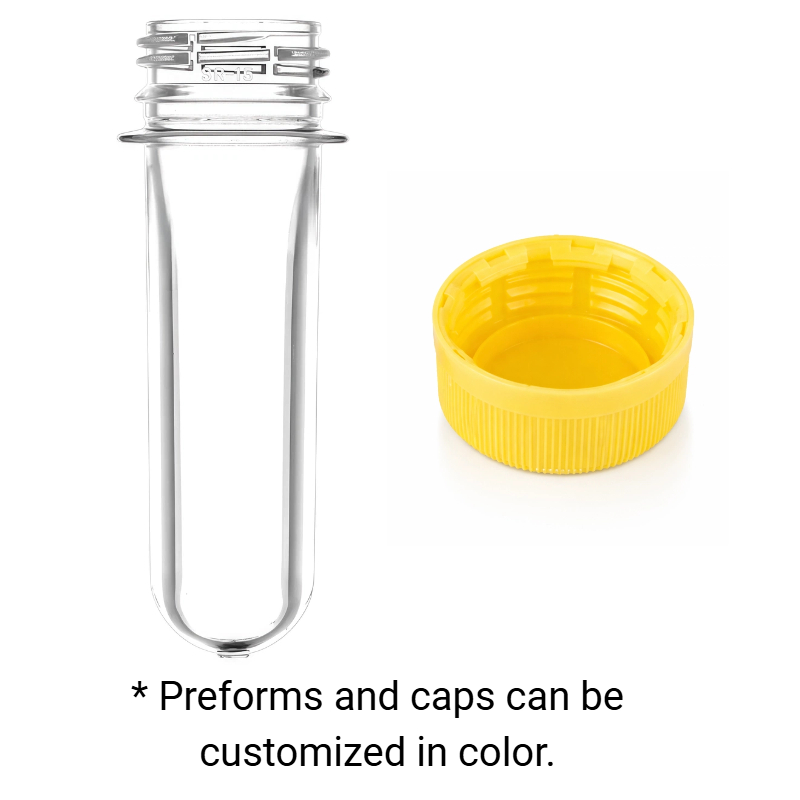

Related products: Caps & Handle

PREVNEXT
More detailed parameter information and product specifications

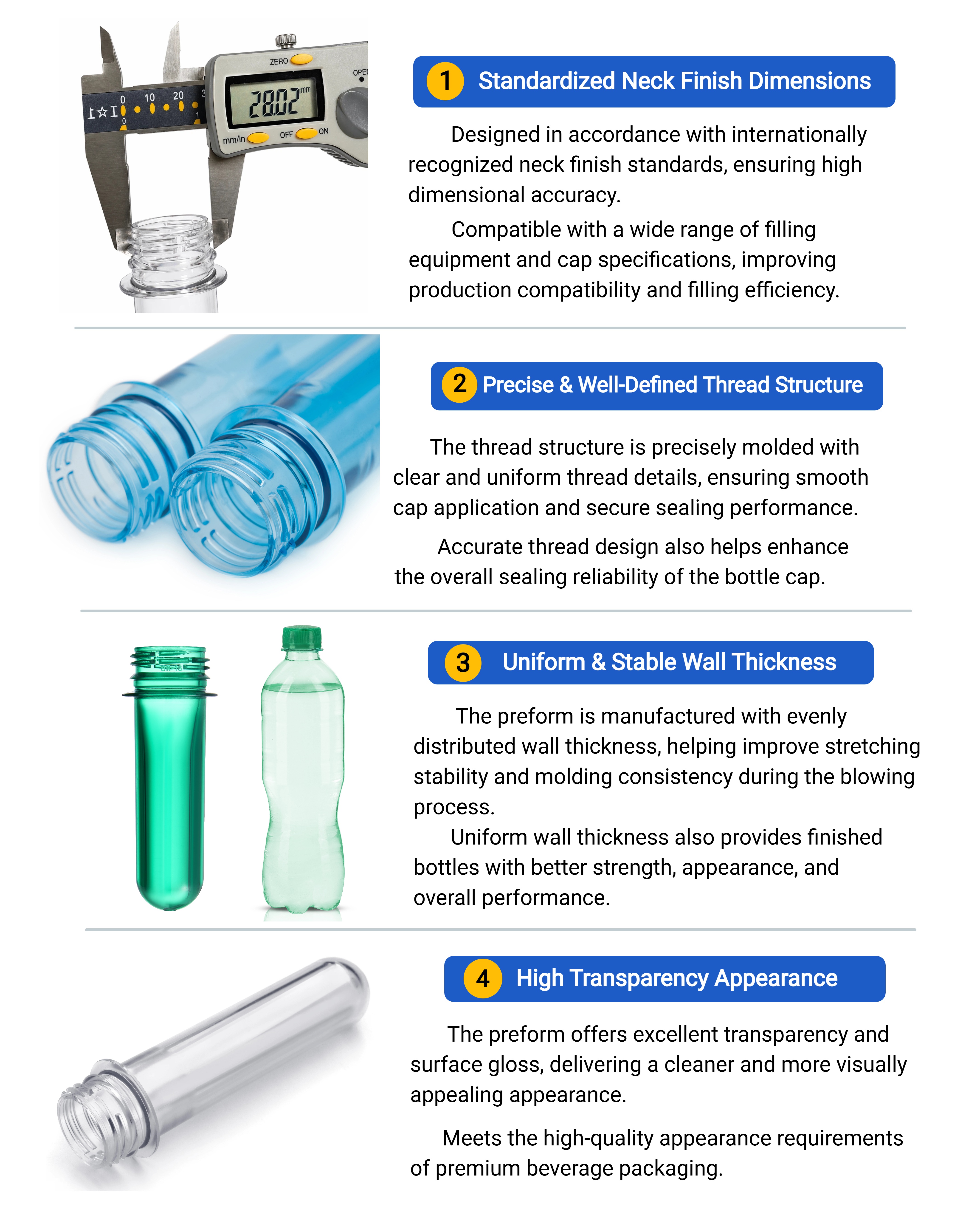

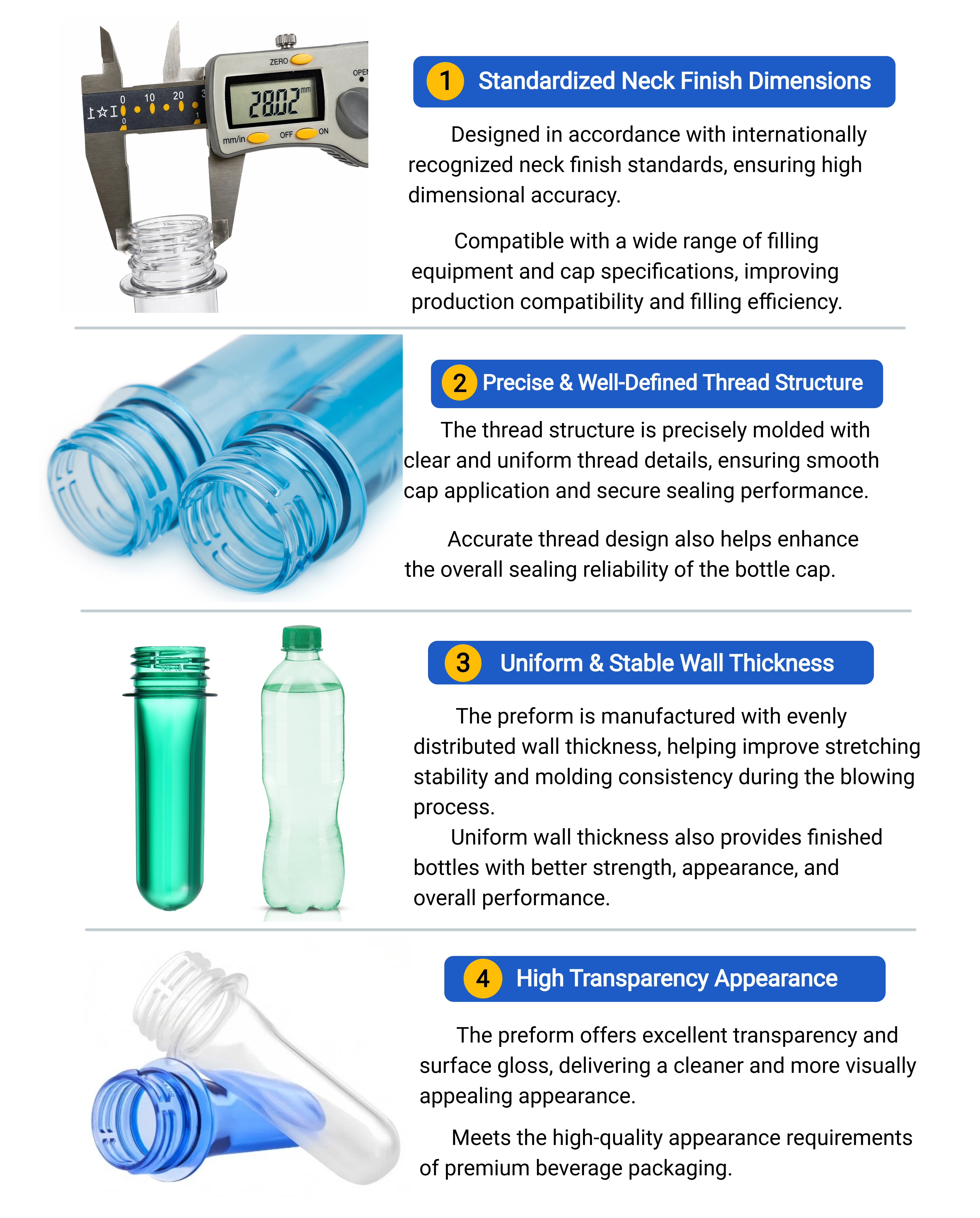

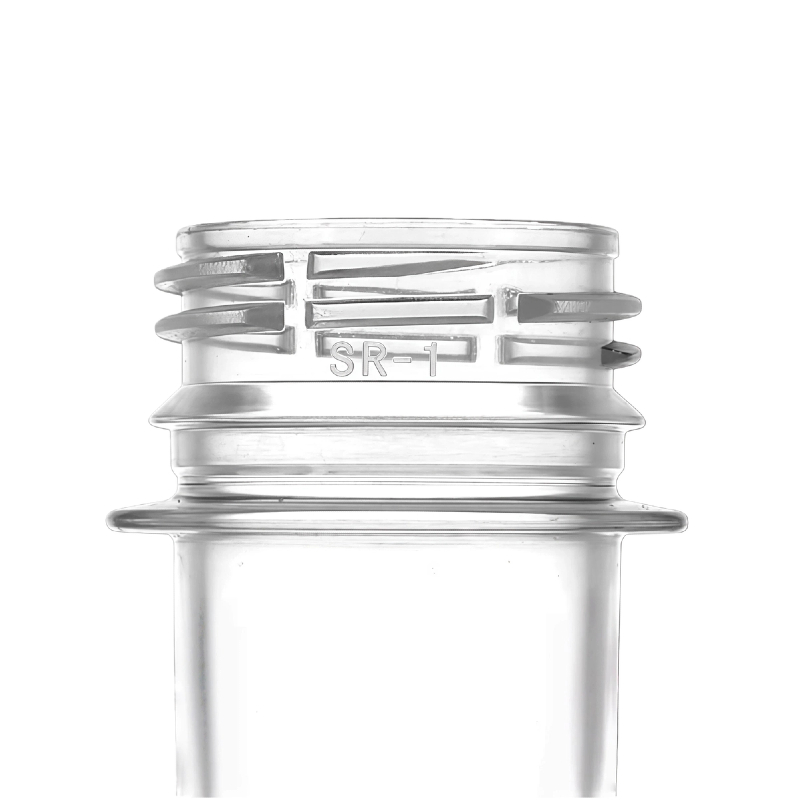

            The 28mm preform is designed for carbonated beverage and soda plastic bottles. This product is available in PCO1881 and PCO1810 finishes, both with the standard 28mm neck size. Its most notable feature is the tamper-evident broken-thread neck design, which ensures reliable sealing performance while allowing the safe and controlled release of internal pressure when the bottle is opened.

       The product can be manufactured using standard PET raw materials or specialized resin for carbonated beverages. Based on the characteristics of carbonated drinks, we have optimized both the neck and body structure to improve the overall quality and performance of the finished bottle.

                        About the product

Product component

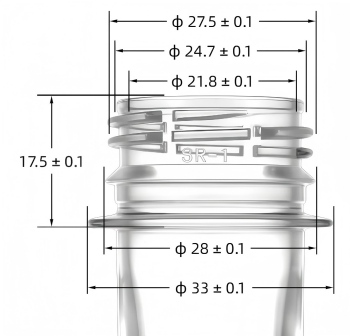

Dimension value
Thread Outside Diameter (mm)   φ 27.5 + 0.1
Top Diameter (mm)   φ24.7+ 0.1
Neck Inner Diameter (mm)  φ  21.8 + 0.1
Neck Height (mm)    17.5 ±0.1
Tamper-Evident Ring Diameter (mm)   φ 28 ± 0.1
Support Ring Diameter (mm) φ 33 ± 0.1

Weight Total height Volume More detail
13.5 g 76 mm 250 ml ~ 300 ml

Packaging: Carton /Bag

Color: Transparent / Customer

Packaging： Carton / Bag

Quanity: Based on product specifications

Lead time: 5-15 days

Length tolerance controlled within: ±0.2mm

Weight  tolerance controlled within: ±0.3g
15 g 89 mm 300 ml~  400 ml
22 g 79 mm 450ml ~ 500 ml
25 g 90 mm 500 ml ~ 600ml
27.5 g 93 mm 500ml ~ 650ml
37 g 90 mm 550ml ~ 700ml
46 g 92 mm 700ml ~ 1000ml
51 g 92 mm 1000ml ~ 2000ml

▶Remark：

The values are measured manually and with electronic calipers,so there is an allowable deviation.


                              More details


                       Ordering process


About Honsen

Foshan Honsen Plastic Industry Co., Ltd. is a professional preform manufacturer with a reliable business scope. The company's main business scope is the production and development of PET preforms, PET plastic bottles, and packaging for drinking water and beverage products. We are Manufacturers and Custom Factory. Honsen is committed to technological innovation and product quality improvement, providing customers with innovative and environmentally sustainable packaging solutions. We use advanced production equipment and processes to ensure reliable product quality. Whether it is from raw material procurement to production process control, we take it seriously to follow industry regulations to ensure product safety and environmental performance. Whether you need a large number of standardized preforms or special customized products, we can meet your needs. If you are looking for a high-quality, safe and harmless food-grade plastic container, please feel free to contact our sales manager for more information.
